In any process industry temperature measurement is also major parameter to maintain the temperature of fluid process & reaction. Pressure transmitters helps you to measure the pressure of gases, vapours, liquids in different industries like sugar factories, power plants, steel plants, refineries, chemical, food & pharmaceutical companies.

1. TEMPERATURE TRANSMITTER

TECHNICAL SPECIFICATIONS

Type of Input :	RTD (PT-100/PT-200), Thermocouple (B, E, J, K, R, S, T), Resistance, millivolt (0 to 100 mV)
Output :	4-20 mA, 4-20 mA with HART
Display :	LCD Display
Accuracy :	+/- 0.1% F. S.
Power Supply :	24V DC
Electrical Connections :	1/2 Inch NPT (F) / M20 X 1.5 (F) / DIN 43650 Connector
MOC Electronics Enclosure :	Die Cast Aluminum / S S316

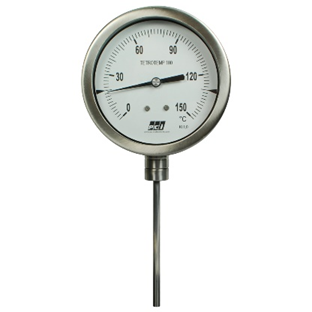

2. TEMPERATURE GAUGES

Revotron Engineering supply the Bimetal thermometer employs a bimetal strip in the form of helix (it works on the principle of thermal expansion - two metals having different coefficient of expansions are joined to form a bimetal. The resultant expansion of bimetal is proportional to temperature). Bimetal dial thermometers are simple in construction, yet rugged. They are used for measurement of temperature in most of the industrial o applications. They are offered in the range of (-) 50 C to 600 C. With rigid stem having bottom or back entry. It can also be offered in every angle rotatable construction.

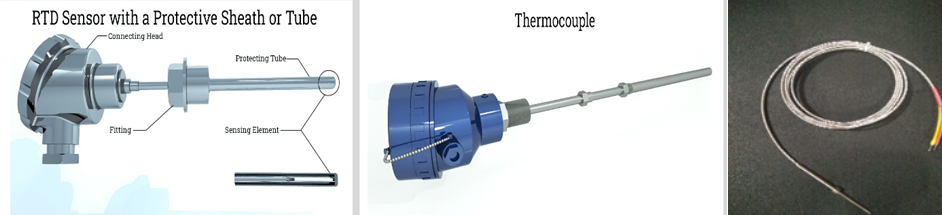

3. TEMPERATURE SENSORS

Revotron Engineering supply the different types of temperature sensors of reputed makes, for various applications to meet industrial applications requirements.
