In any process industry pressure measurement is a vital parameter to maintain the pressure of fluid process, reaction & safety of process equipment. Pressure transmitters helps you to measure the pressure of gases, vapours, liquids in different industries like sugar factories, power plants, steel plants, refineries, chemical, food & pharmaceutical companies

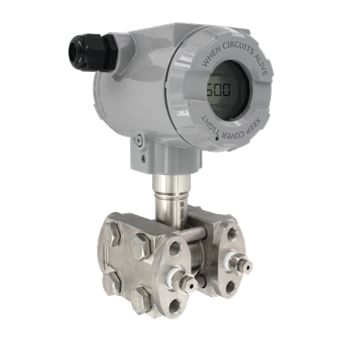

1. DIFFERENTIAL PRESSURE TRANSMITTER
TECHNICAL SPECIFICATIONS
| Measuring Range : | -0.1885psi to 1000psi |
| Supply Voltage : | 12.5 - 45 VDC |
| Signal Range : | 3.9mA - 20.8mA |
| Accuracy : | +/-0.075% of URL for SPAN |
| Static Pressure : | Flanged, Other on request |
| Electrical Connections : | M20 x 1.5 / 1/2 Inch NPT / 1/2 Inch BSP / 3/4 Inch ET |
| Process Connection : | 1/4 Inch NPT (M/F), 1/2 Inch NPT (M/F), 1/4 Inch BSP (M/F), 1/2 Inch BSP (M/F), 5 Meter Capillary |
| MOC Electronics Enclosure : | Die Cast Aluminum PU Painted / SS316 |
| Display Type : | LCD Display |
| Filling Fluid : | Silicon Oil / Inert |
| Output : | 4 to 20 mA, 4 to 20 mA with HART |
| Sensor Type : | Capacitive Sensor / Piezo Resistive Sensor |
| Diaphragm Material : | SS316L , Hastelloy C, Other |

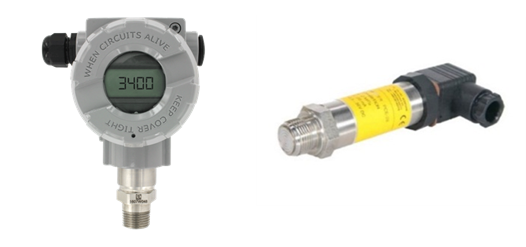

2. PRESSURE TRANSMITTER
TECHNICAL SPECIFICATIONS
| Measuring Range : | -1.160psi to 10000psi |
| Supply Voltage : | 12.5 - 45 VDC |
| Signal Range : | 3.9mA - 20.8mA |
| Accuracy : | +/-0.075% of URL for SPAN |
| Electrical Connections : | M20 x 1.5 / 1/2 Inch NPT / 1/2 Inch BSP / 3/4 Inch ET |
| Process Connection : | 1.4 Inch NPT (M/F), 1/2 Inch NPT (M/F), 1/4 Inch BSP (M/F), 1/2 Inch BSP (M/F) |
| MOC Electronics Enclosure : | Die Cast Aluminum PU Painted / SS316 |
| Display Type : | LCD Display |
| Filling Fluid : | Silicon Oil / Inert |
| Output : | 4 to 20 mA, 4 to 20 mA with HART |
| Sensor Type : | Capacitive Sensor / Piezo Resistive Sensor |
| Diaphragm Material : | SS316 / SS316L / Hastelloy C / With Remote Seal |
3. PRESSURE SWITCHES
Revotron supplies foremost quality pressure switches of different makes. in Pressure switches are important components for controlling the activation and deactivation of pumps in fluid systems when pressure thresholds are reached. They are also used in process control systems for maintaining steady pneumatic or mechanical pressure. Pressure switches are used in industrial applications to control pressure in pipelines. Oil Pressure Switches: Oil pressure switches are found in engines, compressors, and hydraulic systems. They perform the same function as gas and air pressure switches in regard to the use of oil.
4. PRESSURE GAUGES
Revotron Engineering supply Pressure Gauges intended for Process Industries such as Chemicals, Petro-chemicals, Energy or Gas industry, Food processing, Nuclear etc. to measure fluid pressure during the process in closed conduits. These pressure gauges have been designed to satisfy requirements to operate in aggressive environment.
