At Revotron Engineering various types of strainers are available. Strainers are devices used to separate unwanted solid particles from gas, liquid or steam flowing in a pipe. They derive their name from their shape.

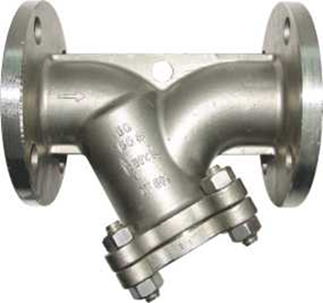

1. Y TYPE STRAINERS

The Y-type strainer is commonly applied in pressurized fluid lines as well as in vacuums and suction conditions. This product is designed for remove foreign matter from pipe lines and provides protection for pumps, meters, valves, and other similar mechanical equipment.

TECHNICAL SPECIFICATIONS

Line Size :	1/2 Inch To 24 Inch
Body :	WCB, LCB, LC2, WC-1, WC-6, WC-9, CF8, CF 8M, Other on request.
Screens :	SS 304, SS 316 mesh & hole size as per requirement
Pressure Rating :	150# To 1500#
End Connection :	Flanged, Other on request

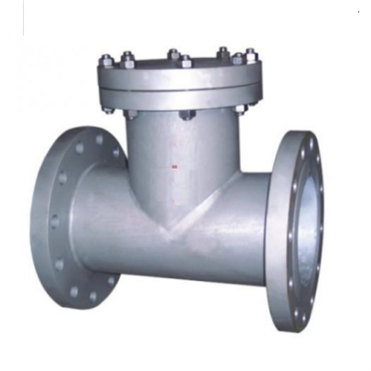

2. T TYPE STRAINERS

T-type strainers are designed to eliminate particles from pipelines where a compact accessible strainer is needed for protection of pumps, valves and similar equipment. Tee Type Strainers are a low cost solution to large nominal bore. T Type Strainer can be used in both vertical and horizontal installations

TECHNICAL SPECIFICATIONS

Line Size :	3 Inch To 40 Inch
Body :	CS / SS 304 / SS 316, Other on request
Screens :	SS 304, SS 316 mesh & hole size as per requirement
Pressure Rating :	150# To 1500#
End Connection :	Flanged, Other on request
