Revotron Engineering supplies wide range of steam traps. A steam trap is used to discharge condensates and non-condensable gases. Types available are Thermodynamic, Horizontal float type, Inverted bucket type.

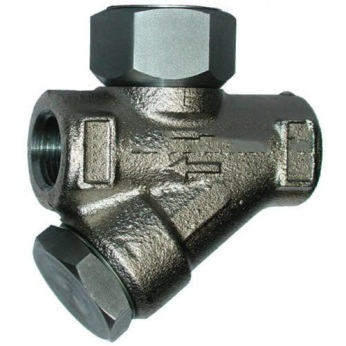

1. THERMODYNAMIC STEAM TRAPS

These are simple, robust and reliable and can operate up to very high temperatures and pressures. This will flash steam to create higher pressure to close a valve (disc) or slow the discharge speed of the trap

TECHNICAL SPECIFICATIONS

Line Size :	15 NB To 25 NB
MOC :	CA15 /CF8/ CF 8M/ CI/ FORGED
End Connection :	Screwed/ Socket/ Flanged
Pressure Rating :	600 psig

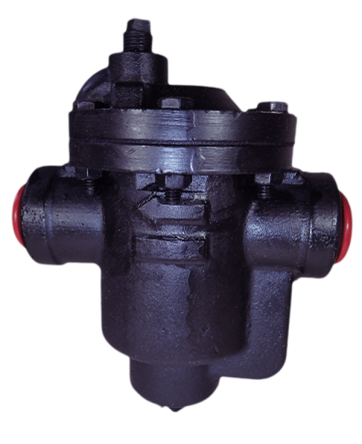

2. INVERTED BUCKET STEAM TRAPS

Inverted bucket steam trap is a mechanical trap classified as a density operated steam trap which operates on the difference in density between steam and water. Trap consists of an Inverted Bucket attached through a lever mechanism to a valve.

TECHNICAL SPECIFICATIONS

Line Size :	15 NB To 50 NB
MOC :	CA15 /CF8/ CF 8M/ CI/ FORGED
End Connection :	Screwed/ Socket/ Flanged
Pressure Rating :	600 psig, Higher on request
